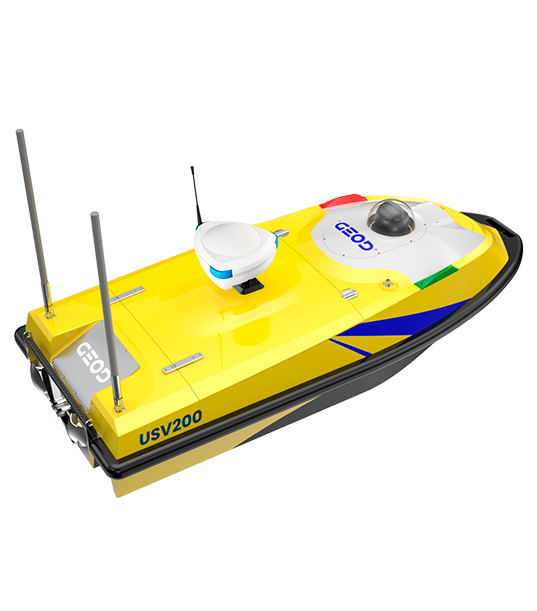

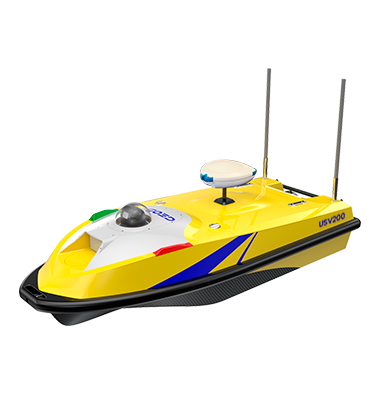

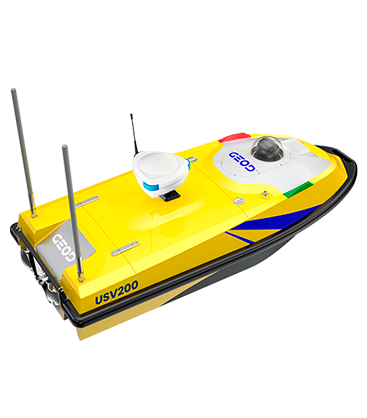

USV200 is a compact and easily transportable USV for bathymetry, dedicated to high-density hydrographic and bathymetric surveys and structural images of the seabed. Ideal for environmental water surveys in harbors, inland waters, lakes, rivers, etc.
8-10h
Autonomy
5 m/s
Max. speed
32 kg
Weight
15 cm
Draft
2 km
Communication
Single Beam Echosounder Echologger
Multibeam Echosounder R2Sonic 2020-V or 2020-V+
Lidar Velodyne
Lidar Hesai
Oceanographic winch with AML-3 probe
Launch trolley
CADDEN is certified and approved. Training provided by our technical support team.
This lightweight and robust USV is easy to use and transport by one or two people. The design significantly improves stability at high speeds.
The data is transmitted by radio link to the acquisition PC on land to check the results in real time.

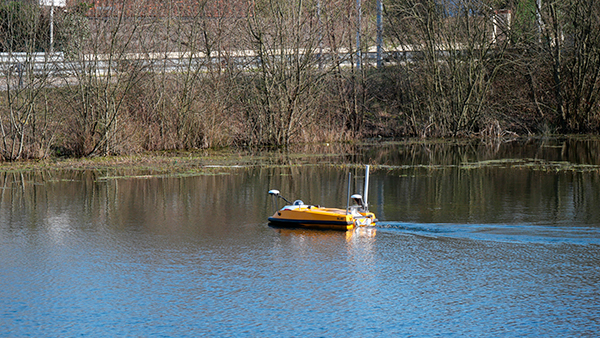

Remote controllable by the operator. With its integrated GPS, it can be used in autonomous mode by following a programmed route. This small and easy-to-handle drone is used for precision mapping of the seabed. Operations are completed much faster than with traditional boat surveys.

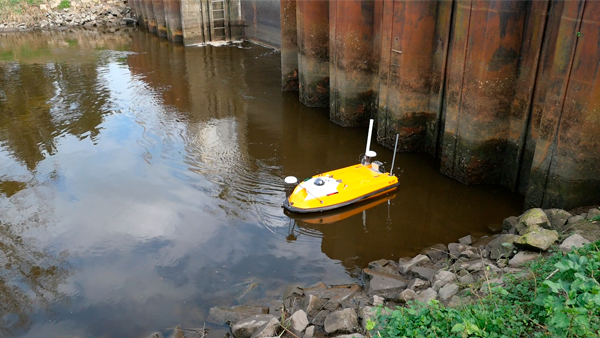

Performs measurements in shallow water, 15 cm draft. Easy-to-handle and responsive with several speeds (up to 5m/s) depending on the requirements and navigation conditions.
Robust and durable carbon fiber hull with integrated well.
The operator is safe on the bank during the survey.
